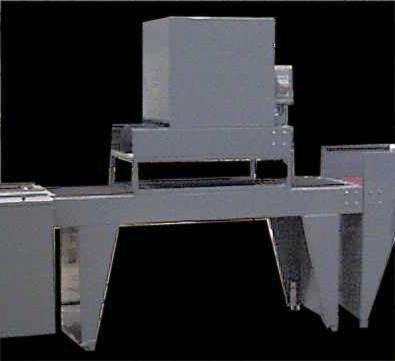

Tray Topper

topper

click thumbnail for larger photo


The tray topper is designed to work with any topping material including vermiculite, soil media, composted bark, gravel, clay or what have you.

Features:

  • All stainless steel construction for long life with wet or corrosive media

  • Heavy duty gearmotor drive on tray conveyor, fixed speed for accurate dispensing

  • Heavy duty dispensing conveyor drive gearmotor, DC for variable rate metering

  • Industrial photoeye for tray detection-switches DC drive on and off to start and stop metering

  • Unique adjustable interior panels to allow changes in tray width with out creating a shelf in the hopper which will collect media

  • Adjustable for dispensing widths from 9" to 16" with only a small wrench

  • Easy timing adjustment for photoeye

  • Adjustable legs to match conveyor heights

  • 110VAC 60Hz standard/220VAC 60/50Hz optional, 1/3hp max.

We also offer a topper with a dispensing drum which is less expensive than the belt topper but is only useful with vermiculite and clay.  It will not work with soil or bark.
